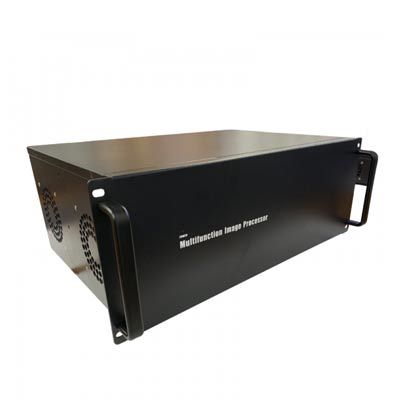

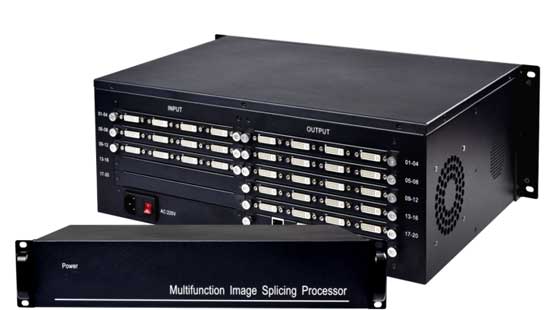

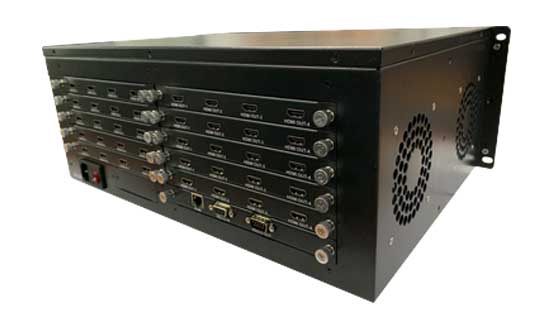

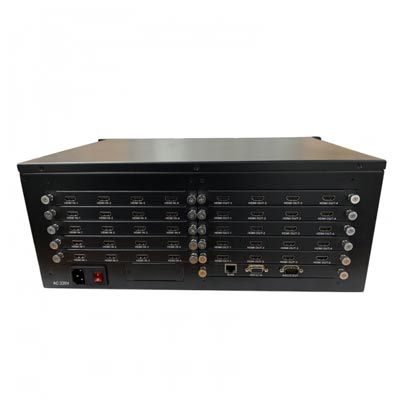

Multifunction Image LCD Video Wall Processor
Multifunction Image LCD Video Wall Processor
Multifunction Image LCD Video Wall Processor
Multifunction Image LCD Video Wall Processor

Multifunction Image LCD Video Wall Processor

  • FPGA-based hardware design with high bandwidth for accessing and processing the high-definition signal.

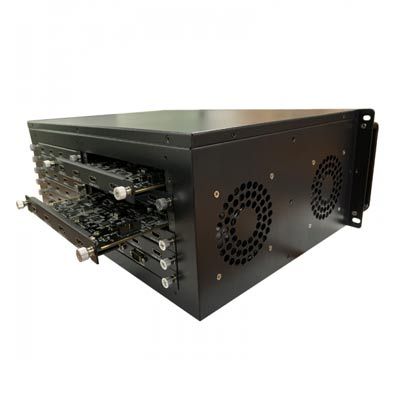

  • Modular card design
  • Input board, output board, switch board, fan, power, dust and other major modules are card-type.
  • Design for daily use and maintenance has brought great convenience.
  • Expansion slot support input and output board any mixed interpolation.
  • Support up to 4 groups of display wall group management.

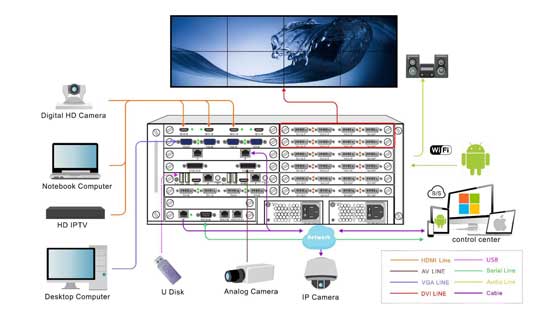

  • Output mapping
  • Engineering site construction more flexibility to achieve the equipment and display unit between the connection wire without a one-to-one, can be adjusted at any.
  • Multifunction Image LCD Video Wall Processor
    Support Various Image Processing
    Video Image Processing, Functional Diversity

    Support signal window, roaming. Support layer overlay, support up to four layers of single-screen layout. Support the input signal acter overlay, you can control the software to change the font type, size, background color, foreground color, display position and other parameters. Support seamless switching, processor integrated high-definition signal processing mechanism to ensure that the signal switch without delay, no blue screen, no black screen and other intermediate transition state.



  • Multifunction Image LCD Video Wall Processor
    Support Multiple Formats Of Image And File Playback
    Network And Multimedia Processing Technology
    IP stream real-time decoding, support H.265. Support multimedia information on the screen Video, pictures, digital titles, rolling banners, electronic clocks, real-time weather and other controldisplay, graphic information editor, to meet a variety of display device information on the screen.

    Comes with a playback system that supports all kinds of media formats. Support (rmvb, avi, mpeg, dat, mov, mkv, wmv, etc.), audio (mp3, wma, wav, etc.), pictures (jpg, gif, png, etc.); support streaming TV, Etc., support PDF, office documents, dynamic web pages, weather, time, rolling subtitles and so on.

  • Multifunction Image LCD Video Wall Processor
    Support Windows, IOS, MAC OS, Android, Linux Cross-Platform Control
    Other Characteristics Of Value-Added Features
    Support redundant power supply. A normal use of power, a backup power supply. When the normal power supply fails, it automatically switches to standby power. Support for BS control / support for cross-platform control No need to install any client software, support web login control; support windows, IOS, MAC OS, Android, Linux and other operating systems cross-platform control. Chassis fan speed according to the device temperature adaptive. Support pre-operation mode, if open this function, all the window operation will not take effect immediately, need to click confirm button and then all the operations will take effect.
