home / Products / Video Wall / 0.88mm - 3.5mm LCD Video Wall / 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall

55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall


  • Panel Size: 55 Inch
  • Panel Brand: LG
  • Brightness: 500 Nits/ 700 Nits
  • Resolution: 1920*1080
  • Bezel: 1.8mm
  • Model Number: PJ-B551P
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
    Intelligent software control
    Intelligent control of central management
    Use intelligent control software to control and configure multiple ultra thin bezel video wall through an RS232 or RJ45 connection (Regardless of the monitor's location ) to make the screen easier to set up and the status of all networked displays.
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall
    Bigger screen for special occasion
    Super big video wall combination
    Through the display's built-in splicing function, it is able to support for a maximum of 15 x 15 total 225 screens to display the complete picture perfectly and without external connection of the processor management equipment.
  • 55 inch 1.8mm Bezel 500nits/700nits UHD 4K Video Wall

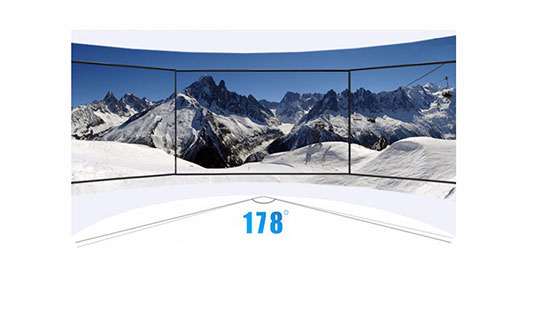

    Super wider viewing angle
    178° ultra wide viewing angle

    The DID LCD 1.8mm bezel video wall has a contrast ration of 3000:1, which is more than twice as high as a conventional PC or TV LCD screen.

    The DID LCD video wall has a super wide viewing angle of 178° vertically and horizontally.

Connect with an expert
Kindly fill in the below form, product expert will contact with you soon.
  • Name*
  • Email*
  • WhatsApp
  • Country
  • Content:*

See all Specs

  • Panel Specification
    1. Panel Brand

      LG

      Panel Size

      55 inch diagonal

    2. Panel Resolution

      1920*1080

      Active Display Area

      1209.6 × 680.4 mm

    3. Bezel Size

      1.8 mm

      Panel Brightness

      500 nits

  • Interface Ports
    1. Input Ports

      HDMI*1, DVI*1,VGA*1,AUDIO*1,RS232*1

      Output Ports

      AUDIO*1, RS232*1

  • Power Supply
    1. Power Input

      AC 110V -240V

      Power Consumption

      Max 195W

  • Environmental
    1. Working Temperature

      0° C - 50° C

      Working Humility

      10% - 90%

  • Accessories
    • HDMI/VGA splitter
      Splitter
    • Multi-input matrix
      Matrix

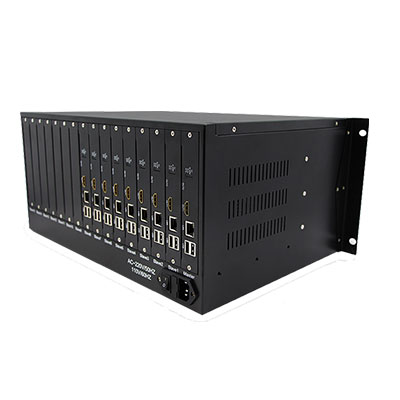

    • Video processor
      Video Processor
  • Installation
    • Standard wall mount brackets
      Standard Wall Mount Installation
    • Pop-out brackets
      Front Maintenance Installation
    • Floor standing brackets
      Floor Standing Installation
    • Hanging brackets
      Hanging Installation
  • Factory Process
    • Accessories
    • Back Cover
    • Rear-Cover-Installation
    • Finished-Product,-Ready-For-Testing
    • Test
    • Packed-And-Ready-To-Ship
  • Wall Mount
    • Start Positioning Installation
    • Hydraulic Support Installation
    • The Installation Is Complete
Download
  • Panel Dimenssions
    2020-12-29 120529kb Downloads:38
  • PJ-B551P-V6K 55inch 1.8mm FHD 500nits
    2020-04-07 531907kb Downloads:112
