500 nits 55 inch 0.88mm Bezel FHD video wall

Panel Size: 55 Inch

Panel Brand: LG

Brightness: 500 Nits

Resolution: 1920*1080

Bezel: 0.88mm

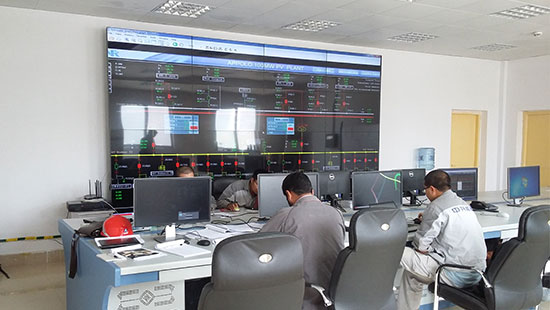

  • Conference video wall
    Video wall for office use

    With ultra narrow bezel and high brightness, the big screen will have a clear explanation of the current situations or market trends.

    It is a popular project for office use. When there are any changes or particular notice, the big screen will tell you all.

  • studio video wall
    Video wall for broadcast

    To make the real-time broadcast,  TV Studio channel display , we need to prepare multi windows to display information and cases from all the onsite situations.

    Under the help of the processor, the video wall can fully meet all the requests for such multi signal inputs.

  • Video wall installation
    Mutilple choices for video wall installtion

    To meet installation environment requests for different projects, we provide different installation methods.

    • Standard wall mount
    • Floor standing type
    • Cabinet type
    • Pop-out brackets
    • Curved installation

See all Specs

  • Panel Specifications
    1. Panel Brand


      Panel Size

      46 inch diagonal

    2. Actual Display Area

      1209.6 × 680.4 mm

      Panel Brightness

      500 nits

    3. Panel Resolution



      0.88 mm

  • Interface Ports
    1. Input Ports

      HDMI*1, DVI*1,VGA*1,AUDIO*1,RS232*1

      Output Ports

      AUDIO*1, RS232*1

  • Power
    1. Power Input

      AC 110V-240V

      Power Consumption

      Max 195W

  • Environmental
    1. Working Temperature

      0 °C - +50 °C

      Working Humility

      10% - 90%

  • Accessories
    • HDMI/VGA Splitter
    • Multi-signal input matrix
    • Video processor
      Video Porcessor
  • Installation
    • Standard wall mount brackets
      Standard Wall Mount Installation
    • Pop-out brackets
      Front Maintenance Installation
    • Floor standing brackets
      Floor Standing Installation
    • Hanging brackets
      Hanging Installation
  • Factory Process
    • Accessories
    • Back Cover
    • Rear-Cover-Installation
    • Finished-Product,-Ready-For-Testing
    • Test
    • Packed-And-Ready-To-Ship
  • Wall Mount
    • Start Positioning Installation
    • Hydraulic Support Installation
    • The Installation Is Complete
  • Panel Dimenssions
    2020-12-29 85938kb Downloads:3
  • PJ-B551P-V6L-55 inch LG 0.88mm FHD 500nits
    2020-04-03 497805kb Downloads:32
